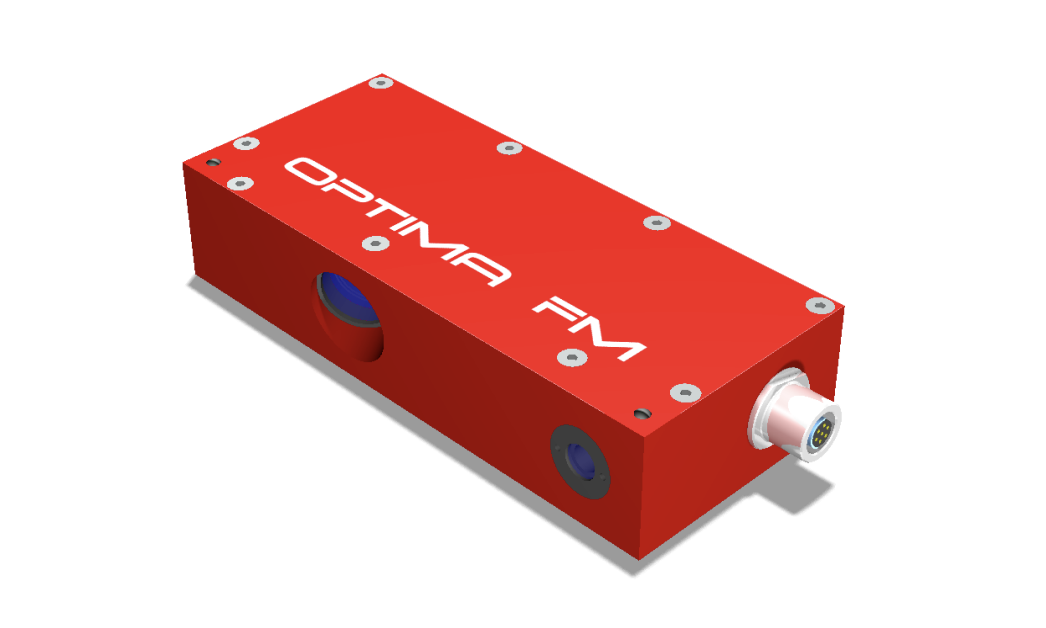

Optimess FM - Laser Distance Sensor for Vehicle Dynamics

The opto-electronic sensor OPTIMESS LC-H is a device for no-contact distant measurement especially for test drive. This sensor distinguishes itself by a great independence of the measurement accuracy on different material surfaces and from the ambient light.

Using a laser diode via an optical system, means it is represented at an angle on a CCD line by receiving optical system. The processor integrated in the sensor processes the optical distance information and output them as an analog value.

  • Distance measurement
  • Position Control
  • Car Industry, Test Drive
  • Minimum size and weight
  • Digital processing of measured values
  • Analog output

Download Brochure for more technical information
