3D Foam Vehicle Targets for Autonomous Testing in the US
Moshon Data's 3D Foam targets are designed to meet ISO 19206-3 standards and Euro NCAP AEB C2C protocols as an alternative 3D foam target for the development of the following applications and tests.
MD-3D-F Ford Fiesta
The MD-3D-F is a 3D dimensional contoured foam target designed to represent a standard production Ford Fiesta visually and to the vehicle sensors. Built to ISO 19206-3 standard.
Technical Specs
| ADAS Tests: | Autonomous Emergency Brake (AEB), Forward collision warning (FCW) and Active Cruise Control (ACC), Reverse AEB, Head-on collision, Blind Spot Detection, Lane Keep Assist |
| Pieces: | 6 Piece |
| Impact Speed: | Up to 50 KPH |
| Set Up Time: | 15 minutes |
| Sensor Signature | Tuned to ISO/SAE/Euro NCAP Standards |
| Compatible with: | Ability to mount onto a robotic platform |

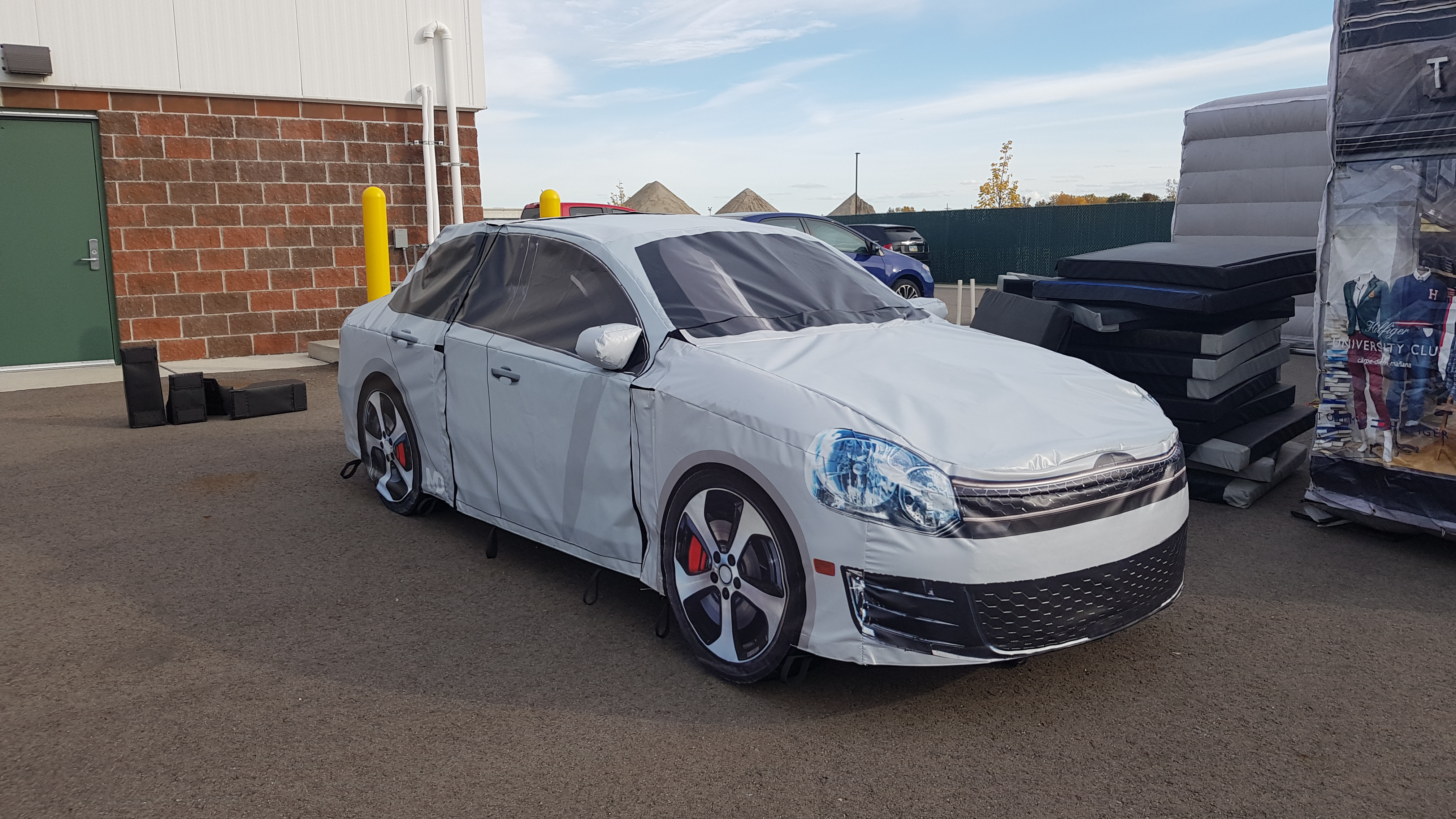

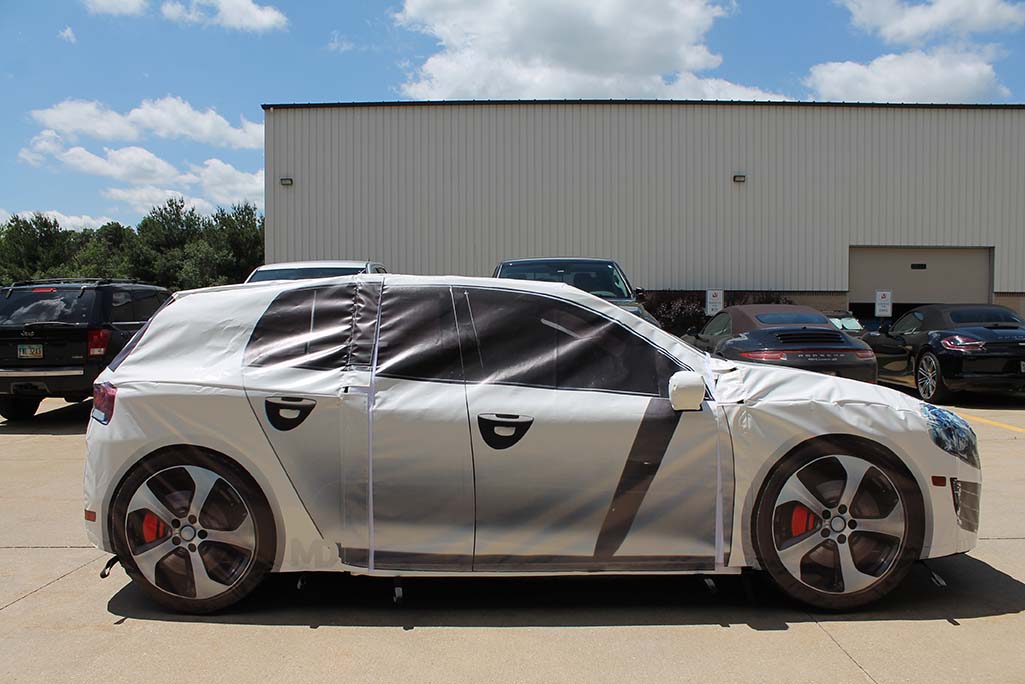

MD-3D-GTI / JETTA
The MD-3D-GTI is a 3D dimensional contoured foam target designed to represent a standard production VW-GTI visually and to the vehicle sensors (Radar, LiDAR, IR Reflectivity). It has been built to ISO 19206-3 standard.
Technical Specs
| ADAS Tests: | Autonomous Emergency Brake (AEB), Forward collision warning (FCW) and Active Cruise Control (ACC), Reverse AEB, Head-on collision, Blind Spot Detection, Lane Keep Assist |
| Pieces: | 3 Piece |
| Impact Speed: | Up to 50 KPH |
| Set Up Time: | 15 minutes |
| LiDAR and Radar Signatures | ECE104 standard reflective material and Energy Shield and Corner reflector tuned to ISO/SAE/Euro NCAP Standards |
| Compatible with: | Ability to mount onto a robotic platform, Use with the 3D Flex-Moshon |
