Flex-Moshon Towing System by Moshon Data

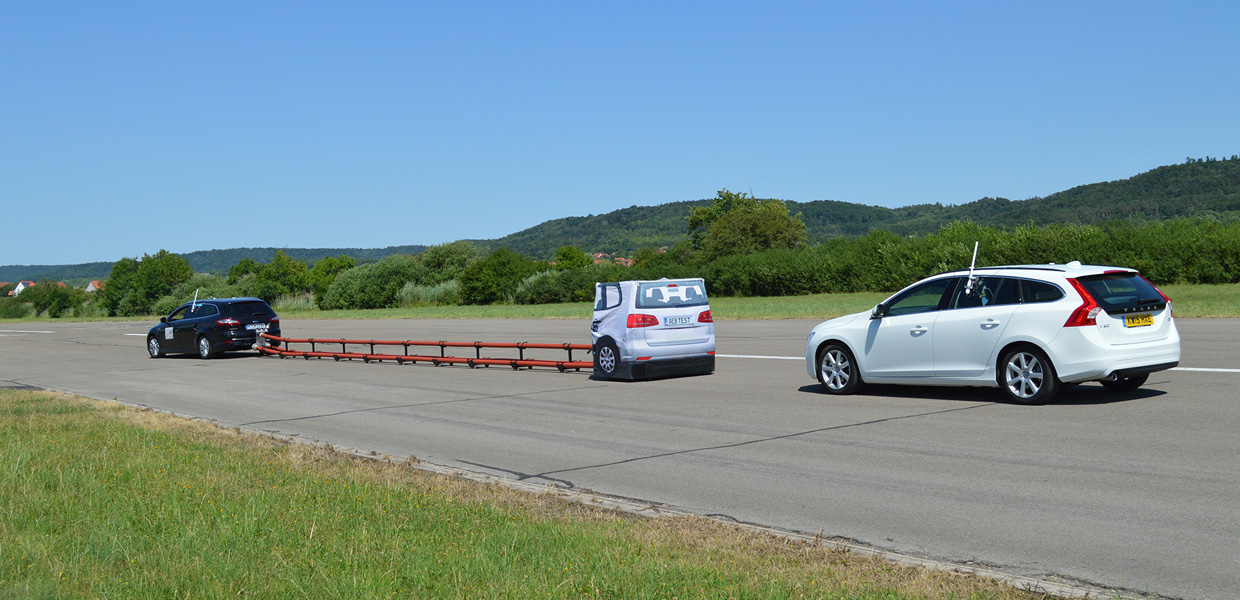

The Flex-Moshon EVT Towing System is designed to tow a balloon car during EuroNCAP AEB, Forward Collision Warning (FCW) and other ADAS tests.
Technical Specs
| ADAS Tests: | Autonomous Emergency Brake (AEB), Forward collision warning (FCW) and Active Cruise Control (ACC) |
| Towing Speed: | Up to 80 KPH |
| Impact Speed: | Up to 50 KPH |
| Set Up Time: | Less than one hour |
| Consists of: | 3 pressurised hoses (15 meter length) including Storz hose coupling, hose carriers with 2 wheels each, a support plate with tow hitch system, the balloon car carrier and 12V compressor |
| Compatible with: | Moshon Data EVT, Moshon Data MD-VT-F, Moshon Data MD-VT and Messrings EVT |
High Speed Flex-Moshon Towing System by Moshon Data
We have adapted the original Flex-Moshon to cater for high speed tests. With a different tray and different length hoses, the High Speed Flex-Moshon can be towed up to speeds of 140KPH.
The High-Speed function does not allow for bigger impact speeds, so it is still recommended to brake if the vehicle has not detected the vehicle target to reduce impact.
With a snake like manoeuvre, upon impact, the Flex-Moshon will move either to the left or right and then return to the position. This technology means there is no risk to the towing vehicle or testing vehicle.
Technical Specs
| ADAS Tests: | Autonomous Emergency Brake (AEB), Forward collision warning (FCW) and Active Cruise Control (ACC) |
| Towing Speed: | Up to 140 KPH |
| Impact Speed: | Up to 30 KPH |
| Set Up Time: | Less than one hour |
| Consists of: | 3 pressurised hoses (10 meter length) including Storz hose coupling, hose carriers with 2 wheels each, a support plate with tow hitch system, the balloon car carrier and 12V compressor |
| Compatible with: | Moshon Data EVT, Moshon Data MD-VT-F, Moshon Data MD-VT and Messrings EVT |
3D Flex-Moshon Towing System by Moshon Data
Recently launched, the 3D Flex-Moshon provided by Moshon Data which includes a full size 3D foam vehicle being towed for testing the following: AEB, FCW and ACC. The 3D foam target which comes with the Flex-Moshon can be used for Static Testing with the towing system isn't required.
Technical Specs
| ADAS Tests: | Autonomous Emergency Brake (AEB), Forward collision warning (FCW) and Active Cruise Control (ACC) |
| Towing Speed: | Up to 50 KPH |
| Impact Speed: | Up to 50 KPH |
| Set Up Time: | Less than one hour |
| Consists of: | 3 pressurised hoses (15 meter length) including Storz hose coupling, hose carriers with 2 wheels each, a support plate with tow hitch system, the balloon car carrier and 12V compressor |
| Compatible with: | Moshon Data 3 Piece VW Golf Target |
