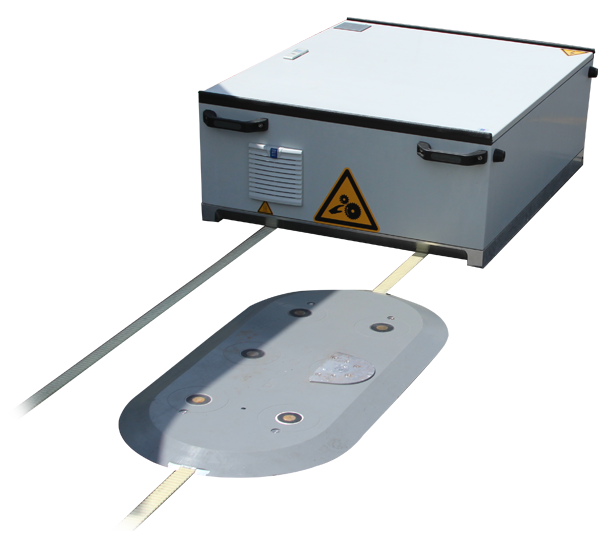

4activeXB - The mobile dummy rig

Product Brochure

The 4activeXB is the "big brother" of 4activeSB and like the 4activeSB, it is the official EuroNCAP test system for all AEB/AES-VRU tests. Due to the open standard concept, it is easy to precisely synchronize with all driving robots and GNSS/Inertial systems. The 4activeXB can move motorcycles (PTW), VRU scenarios with pedestrian and bicyclist targets and finally the vehicle targets such as the GVT.

The 4activeXB is capable to perform with speeds up to 50km/h and with the help of a super capacitor, the dummy rig can handle the needed high power with just a 2,5kW generator.





Technical Specs


Approved By: EuroNCAP 2020 protocols
Compatible With:  All driving robots / GNSS systems
Set up time:  30 minutes installation time
Power system:   low power needed - supercapacitors
Complies with: ISO, EuroNCAP, CNCAP, JNCAP, NHTSA, Asian NCAP
Compatible with: 4activePA, 4activePS, 4activeBS, 4activeMC, 4activeC2, 4activeAN
