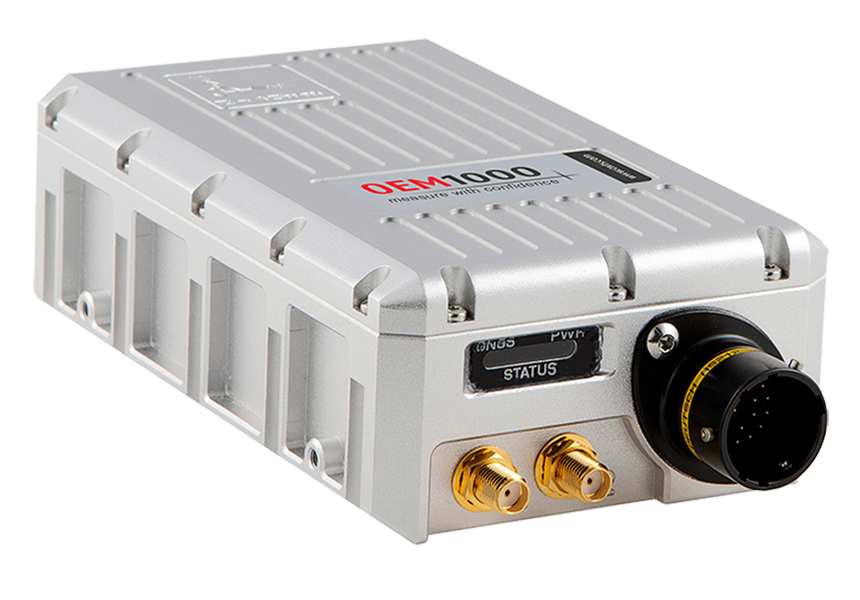

OEM 1000 - The miniature GNSS/INS for integrated solutions

Product Brochure

Deliver accurate and reliable data to your customers even in limited spaces. Trusted globally for ground truth measurements for various applications.

Precision and Accuracy

  • 0.2° Heading accuracy
  • 0.1° Roll/Pitch (PPK)
  • 0.05 m Position Accuracy (RTK/PPK)
  • 0.2 km/h Velocity

Selling Points

  • Combined GNSS + IMU for precise localization in highly automated driving
  • Innovative IMU design and state-of-the-art sensors set a new bar for price/performance
  • Scalable pricing for fleet volumes
  • Trusted OxTS performance with industry-proven Kalman filter and navigation engine
  • Temperature calibrated to boost performance at OxTS in-house calibration laboratory
  • Robust lane-level positioning and full dynamic output for path planning and control
  • Quad constellation for maximum GNSS satellite coverage worldwide
  • Tightly coupled INS maintains real-time output during GNSS outages
  • Dual antenna improves heading accuracy while stationary and during low dynamics
  • No export license requirement enables seamless global transportation
  • ROS2 driver support

Applications

  • Robot control systems
  • Vehicle dynamics testing
  • Autonomous vehicle validation
  • Global NCAP ADAS testing

Brendel Associates can support your OxTS products requirements and Inertial Navigation System needs across the US. Including WA, MT, ND, OR, NV, VT, CO, KS, CA, AZ, NM, OK, TX and MX

Do not hesitate to contact us for more information of any of the product range listed above.
